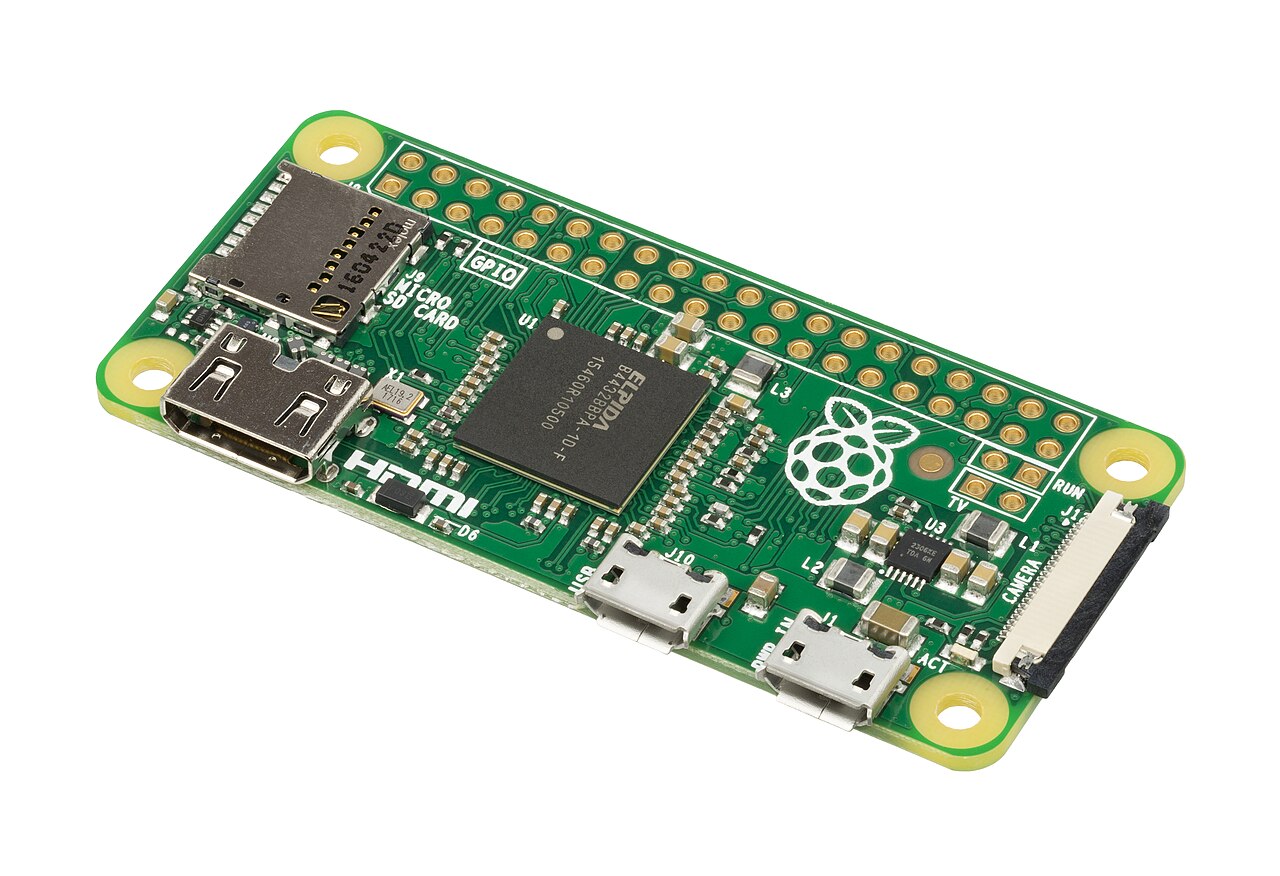

3D printing custom electronics enclosures is one of the most immediately practical applications for a home printer — the gap between off-the-shelf case options and the specific dimensions, mounting requirements, and feature set of a custom project is precisely the kind of problem that a 3D printer solves perfectly. According to Raspberry Pi Foundation's official documentation, the Pi 5 is used in a remarkably diverse range of applications that each require different enclosure configurations — active cooling, GPIO access, display mounting, camera integration, DIN rail mounting — that no single commercial enclosure accommodates. Designing and printing your own gives you exactly the configuration you need at material costs measured in cents to dollars, with the ability to iterate and improve the design with each print.

Design Approaches for Raspberry Pi Enclosures

Raspberry Pi enclosure design starts with the board's mounting specification. The Pi 4 and Pi 5 use four M2.5 mounting holes at specific coordinates published in the official mechanical drawing available from the Raspberry Pi website; designing your enclosure around these exact positions — using printed M2.5 standoffs at the correct height to lift the board off the enclosure floor while keeping connectors accessible — is the foundation of a functional case. The critical measurement is standoff height: too short and the board sits on solder joints, potentially shorting them to a conductive base; too tall and the case height increases unnecessarily. A 5mm standoff height for 1.6mm PCBs is standard for most single-board computers. Connector cutouts must accommodate connector depth plus insertion finger clearance — USB-A connectors need approximately 12mm of depth in the case wall, HDMI 9mm, and USB-C with a plug inserted needs approximately 16mm. Design connector openings 0.5mm larger than the connector's actual dimensions to account for FDM print tolerance and allow plugs to insert without catching.

Custom PCB Housing: From Schematic to Printed Case

When the project involves a custom PCB rather than a standard single-board computer, the enclosure design process starts from the PCB layout rather than a published mechanical drawing. Export the PCB outline as a DXF or SVG from KiCad, Eagle, or EasyEDA, then import it into your CAD software (Fusion 360 handles DXF import cleanly) as the floor plan for the enclosure base. Place mounting hole standoffs at the PCB's mounting hole positions, extrude a floor around the PCB outline with 1 to 2mm wall thickness, then add side walls at the height needed to clear the tallest component plus 2 to 3mm headroom. Connector cutouts on side walls should be positioned from the PCB floor reference rather than from the case exterior to maintain accurate alignment with soldered connectors regardless of wall thickness variation.

Ventilation Design for Heat Management

Electronics generate heat, and heat trapped in a closed 3D printed enclosure shortens component lifetime and can cause thermal throttling or damage. Passive ventilation — carefully designed vent openings that allow natural convection — handles thermal loads adequately for most low-power single-board computers and microcontroller projects. The key principle is providing both inlet and outlet vents positioned to create a natural convective flow path: cool air enters through vents near the bottom and at lower-temperature areas, rises as it warms near heat-generating components, and exits through vents at the top. For a Raspberry Pi 4 generating 4 to 8 watts under load, a vent area of approximately 2,000 to 3,000 mm² total — split between inlet and outlet — provides adequate passive airflow in a compact enclosure. Honeycomb vent patterns offer high open area with good structural integrity and print cleanly with 1mm or wider bridges at standard FDM layer heights.

Material Selection for Thermal Environments

Material choice for electronics enclosures is primarily driven by the thermal environment the case will experience in service. PLA is adequate for most room-temperature desktop electronics applications where the SBC or board is running at moderate load — a Pi 4 running a media player application in a living room environment imposes no challenging thermal demand on a PLA enclosure. The risk appears when the enclosure traps heat during high sustained load: a Pi running a demanding workload can push hotspot temperatures near or above PLA's 60°C heat deflection temperature, causing the case to soften and deform against a heatsink or hot component. PETG raises this threshold to approximately 80°C and is the better default choice for any application where sustained high CPU or GPU load is expected — the marginal cost compared to PLA is minimal and the safety margin is meaningful. ABS and ASA should be considered for enclosures mounted in vehicles (where dashboard temperatures can exceed 80°C in summer), industrial environments, or enclosures adjacent to power electronics generating significant heat.

Snap Fits, Magnetic Closures, and Assembly Features

The closure mechanism for an electronics enclosure determines how easy it is to access the internals for maintenance and modification — a practical concern for projects that are actively developed or that may require troubleshooting. Snap fit closures — interlocking cantilevered tabs and recesses that click together without fasteners — are satisfying to use but require careful design: the tab must be long enough to flex during assembly and engagement, thick enough to resist fatigue cracking from repeated flexing, and positioned so the engagement force is applied along the tab's length rather than against its width. A 2mm thick tab, 8mm long, with a 0.5mm step engagement depth is a reasonable starting point for PLA or PETG snap fits in enclosure-weight applications. Magnetic closures — small neodymium magnets embedded in printed recesses in both lid and base — provide tool-free opening with clean external appearance.

What It Means for Makers

Designing your own electronics enclosure is a project that pays compound returns: the CAD skills developed translate immediately to every future enclosure, mounting bracket, and custom housing project. Start with a standard Raspberry Pi case designed from the official mechanical drawing, print it, iterate on the connector clearances and standoff heights based on the physical fit, and you will have built the fundamental template for any future SBC enclosure. The combination of CAD skill, material knowledge, and thermal design understanding gained from a first enclosure project is the foundation for professional-quality embedded systems packaging that costs a fraction of commercial alternatives.
