Layer shifting is one of the most frustrating failure modes in FDM printing: one moment your print looks perfect, and the next a complete layer has jumped several millimeters sideways, ruining the entire job. According to Prusa Research's troubleshooting guide on layer shifting, the root causes fall into three broad families — mechanical looseness, electrical under-driving, and motion system overload. Identifying which family applies to your machine requires a systematic approach rather than random trial and error. This guide walks through diagnosis and correction in order from most common to least common cause, saving you hours of wasted filament and frustration on a problem that almost always has a clean, permanent fix.

Understanding What Actually Causes Layer Shifting

The printer's motion system moves the toolhead in X and Y by pulling timing belts attached to stepper motors. A shift occurs when the physical position of the toolhead diverges from the position the firmware believes it is at — the firmware keeps counting steps, but the real-world head has slipped. This divergence happens in one of three ways: the belt skips a tooth on a pulley because tension is too low or a pulley is loose, the stepper motor skips a step because it is being asked to produce more torque than its driver can supply at the commanded current, or the print head physically collides with something — a warped part edge, a blob of melted plastic, or a knocked-over print — and is deflected off course. Each of these causes leaves a different signature in the failed print. Belt tension issues often produce intermittent shifts in one axis only. Driver current problems tend to cause shifts under high acceleration or at certain layer heights.

Diagnosing and Fixing Belt Tension and Pulley Issues

Start with belts. A properly tensioned GT2 belt should produce a low bass tone — roughly a D note or around 75 Hz — when plucked over a 150mm span, similar to a loose guitar string. Flaccid belts allow tooth skip under moderate acceleration. To check tension, push down gently on the belt midspan while the carriage is at center: there should be minimal deflection. Most modern printers include a built-in belt tension indicator in their firmware status screens; consult your machine's documentation for target values. Tighten the belt by adjusting the tensioner at the end of the axis — usually a thumbscrew or a sliding motor mount. While you are at the belts, physically grip each pulley and try to rotate it by hand relative to the motor shaft. Any rotational play indicates a set screw has backed out. Tighten all set screws — particularly the one seated against the flat of the motor shaft — and add a drop of threadlocker. Check the idler pulleys too: worn or wobbly idler bearings cause vibration and inconsistent belt engagement.

Stepper Motor Driver Current and Temperature

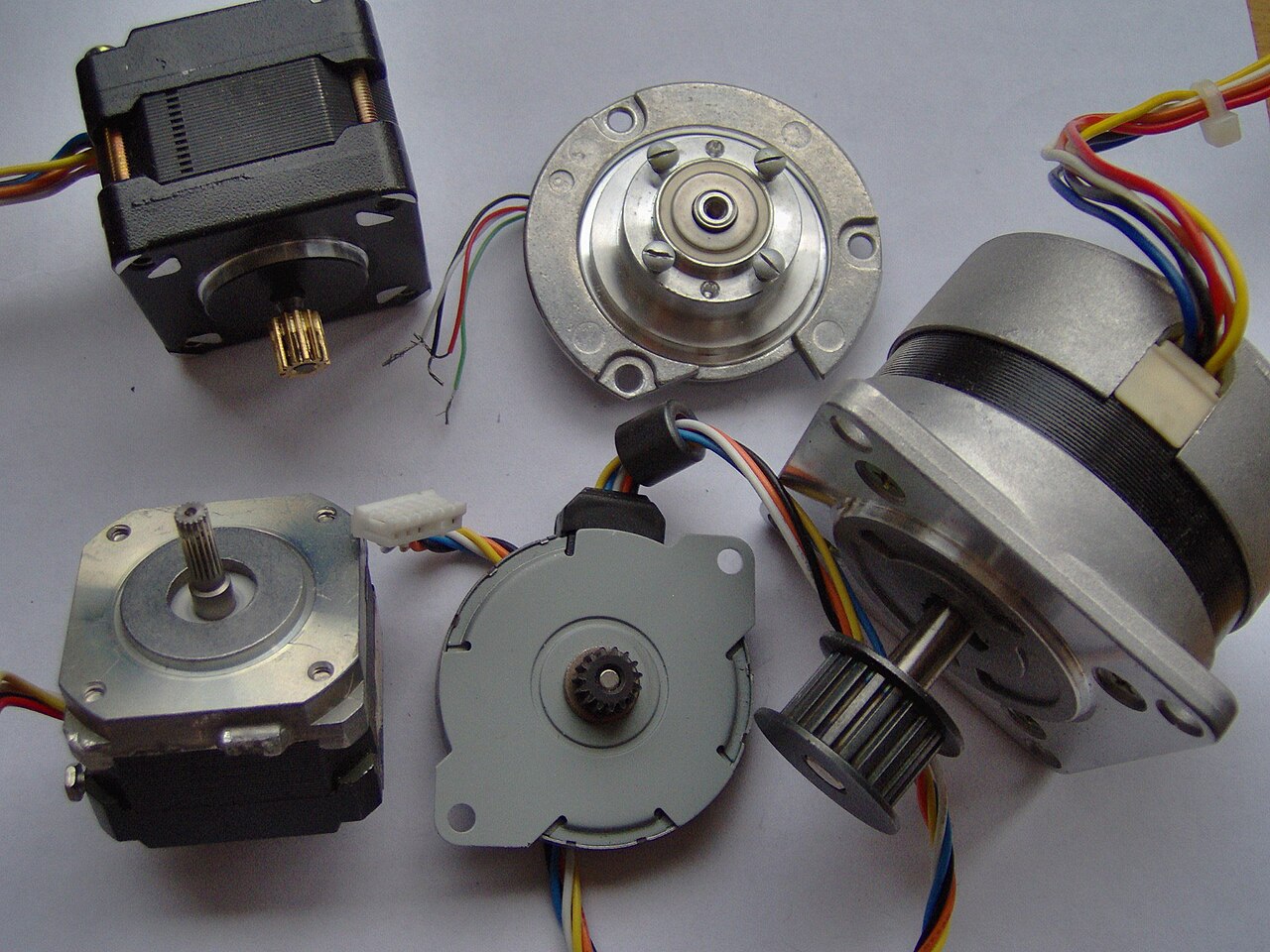

If belts and pulleys are healthy, move to the electrical side. Stepper motors skip steps when asked to produce torque exceeding what the driver can sustain at its current setting. The symptom is characteristically intermittent: prints shift at high speed but succeed at lower speeds, or shift only when the head reverses direction rapidly. On Marlin-based printers, motor current is typically set via TMC driver configuration in firmware or via a physical potentiometer on the driver board. Consult your printer's documentation for the recommended RMS current value — most 0.9° stepper systems in desktop printers run well at 600 to 900 mA RMS. If you are running a printer with externally adjustable drivers, use a multimeter to verify the Vref voltage. Equally important is driver temperature. TMC drivers thermal-throttle and lose torque when they overheat, and this is a common cause of afternoon shifts on machines that have been running for several hours. Improve airflow over the control board, ensure the driver heatsinks are properly mounted, and never cover the electronics bay.

Print Speed, Acceleration, and Collision Shifts

The firmware's acceleration and jerk settings determine how aggressively the print head changes velocity. Running acceleration higher than the mechanical system can follow reliably is a classic cause of shifts on otherwise healthy hardware. For Cartesian printers running standard stepper configurations, keeping acceleration at or below 2000 mm/s² reduces shift risk significantly on perimeter moves. For CoreXY machines, where both motors act together on every diagonal move, tuning is more sensitive and resonance compensation via input shaping — available in Klipper and on Bambu, Bambu-adjacent, and newer Prusa firmware — makes the biggest single difference in allowing high speeds without shifts. Enable input shaping if your firmware supports it; the calibration print takes under ten minutes and typically allows a 30 to 50 percent speed increase with fewer artifacts.

Systematic Verification After Fixes

After each intervention, run a controlled test rather than jumping straight to a long production print. Print a tall single-wall cylinder at progressively increasing speeds — starting at 60 mm/s and stepping up to your target speed — while watching the printer carefully. Any shift will manifest as a sudden horizontal line in the cylinder wall, and the speed at which it occurs tells you precisely how much headroom your fix recovered. If shifts are gone through your entire speed range, run one full production print at target settings before declaring the problem solved. Keep a log of what you changed and the print result; layer shifting has an infuriating tendency to return when seemingly unrelated changes are made to the machine, and having documented baseline conditions speeds future diagnosis significantly. For persistent intermittent shifters, thermal cameras or IR thermometers pointed at the driver board during a run often reveal throttling that no visual inspection would catch.

What It Means for Makers

Layer shifting almost always has a root cause you can fix permanently — it is rarely a sign that a printer is worn out. Work through belts and pulleys first, then driver current and temperature, then speed and acceleration settings. Input shaping in Klipper or compatible firmware is the single highest-leverage upgrade for makers pushing their machines fast, converting a mechanically marginal setup into a robust one. Once you have traced and fixed the specific cause, your machine will likely run more reliably than it did before the problem appeared, because the diagnosis process forces a thorough inspection of components that rarely get checked otherwise.
