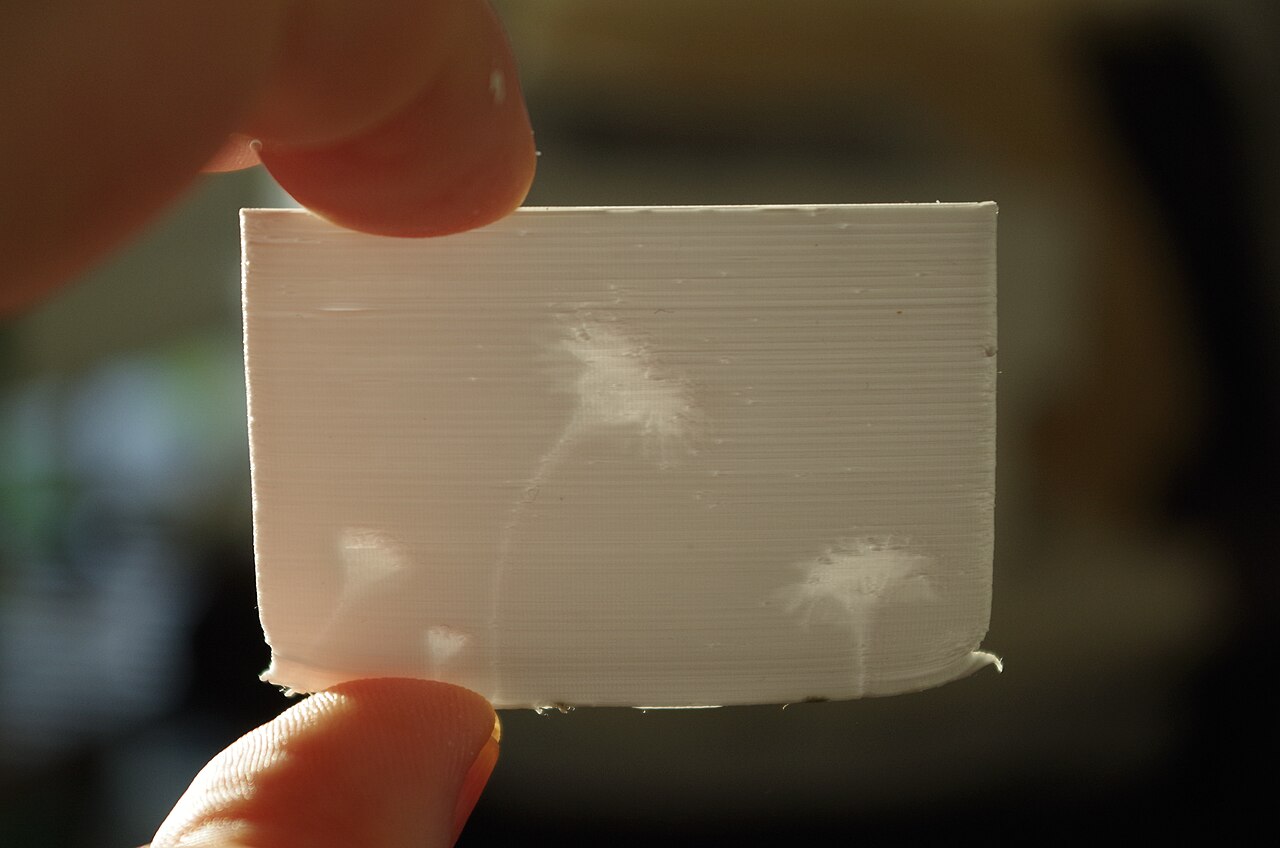

A lithophane is a three-dimensional negative-relief sculpture whose subject — typically a photograph — only becomes visible when backlit. The technique dates to early 19th-century porcelain art, but desktop FDM printers have made it trivially accessible: convert a photograph through a generator, slice with specific settings, and print in translucent PLA. The results range from impressive desktop ornaments to custom lamp shades, night lights, and window panels. Getting good results, however, requires understanding why lithophanes differ optically from every other print type and tuning your workflow accordingly.

How Lithophanes Work Optically

Unlike a standard print where surface texture and color carry the image, a lithophane encodes the image in thickness variations. Thicker regions block more light and appear darker; thinner regions transmit more light and appear brighter. The mapping is inverted — bright areas in the source photo become thin walls, shadows become thick walls. This means a photograph's whites become the most structurally fragile part of the print, and overextrusion in those thin regions washes out the highlights. The practical consequence is that every parameter that introduces thickness variation beyond what the file specifies — over-extrusion, inconsistent first layer, uneven bed temperature — degrades image quality in ways that would not noticeably affect a structural print.

Generating the File

Several generators convert images to lithophane STL files. 3DP Rocks is the most widely used web-based tool, offering controls for maximum and minimum thickness, curve, border, and output shape (flat panel, curved lamp shade, box, or ornament ball). The maximum thickness setting — typically 3 to 4 mm — sets the darkest tonal value. Minimum thickness, typically 0.6 to 0.8 mm, sets the brightest highlight and must remain above 2 wall thicknesses at your chosen line width to maintain structural integrity. Too small a minimum thickness produces fragile sections that print incompletely or crack during removal. Resolution in the STL corresponds to pixel density; a 4000 px source image at 0.1 mm/pixel produces an extremely dense mesh that some slicers struggle to process — 2000 px at 0.15 mm/pixel is a practical ceiling.

Slicer Settings That Actually Matter

Print orientation matters more for lithophanes than for almost any other object type. Printing a flat lithophane flat — parallel to the bed — means layer lines run horizontally across the image. Light passing through the part encounters layer boundaries at right angles, creating a visible horizontal banding artifact called layer line transmission. The solution is to print lithophanes vertically: stand the panel on its long edge so layers run parallel to the longest axis. Vertical orientation eliminates the banding artifact, though it introduces the structural constraint of printing a tall thin panel without warping.

Layer height should be set at or below 0.1 mm for any lithophane intended to show fine detail. Standard 0.2 mm layers are workable for low-resolution decorative panels but will produce visibly coarse tonal gradients in portraits. At 0.1 mm you trade print time for a smoother tonal range. Wall count should be high — 999 or "all perimeters" in most slicers — so the slicer treats the entire print as walls rather than attempting to add infill, which produces inconsistent transmission. Infill inside a lithophane creates opaque pockets that interrupt the tonal gradient. Set infill to 0% and rely entirely on perimeter density.

Extrusion multiplier (flow rate) requires careful calibration for lithophanes. Even a 3% overextrusion pushes material into the thinner highlight regions, raising their thickness and darkening highlights. Calibrate your flow rate precisely with a thin single-wall cube before printing a lithophane — the standard ABBA EM calibration cube method works well. Print temperature should be at the low end of your filament's range to minimize stringing and over-melt that can fill thin sections.

Material Selection

Natural (undyed) PLA is the benchmark lithophane material. Its slight translucency without strong color cast makes it ideal for neutral-toned panels lit with white LEDs. White PLA transmits more light but with a warmer cast and less tonal separation in highlights. Colored PLAs introduce a color shift that affects the perceived image — a blue lithophane backlit with white light reads as blue, which can be intentional for artistic panels but ruins portrait fidelity. PLA+ formulations are generally equivalent to standard PLA for lithophane use. PETG is a viable alternative with marginally better light transmission in some brands, though it is more susceptible to stringing at lithophane wall thicknesses and requires a dry filament spool. Avoid ABS and ASA — their translucency characteristics are poorer and warping during a tall vertical print is much harder to manage.

Lighting and Display

The lighting source determines how the finished panel looks as much as the print quality does. LED strip light in the 5000–6500 K range (cool white) produces the cleanest grayscale tonal range. Warm white LEDs at 2700–3000 K add a yellow cast that can be flattering for portraits but muddies the full tonal range. Single-point light sources create hotspots that wash out the center of large panels; diffuse lighting — an LED strip behind a frosted acrylic diffuser — produces the most even result. For box-style night lights, the diffuser is built into the box design; for flat panels, the mounting hardware needs to include a diffusing element or maintain sufficient distance between the LED strip and the panel back face for light to spread. A minimum air gap of 20–30 mm between the LED and the panel typically allows adequate diffusion for a 200 × 200 mm panel.

Troubleshooting Common Problems

Washed-out highlights indicate overextrusion, excessive brightness, or minimum thickness set too low. Muddy shadows — where dark areas lack separation — usually mean layer height is too coarse or the source image has poor contrast in shadow regions. Apply a curves adjustment in any image editor to boost shadow contrast before generating the STL. Horizontal banding, if present after switching to vertical orientation, often indicates inconsistent extrusion caused by wet filament — dry the spool. Warping on tall vertical panels is managed with a 10–15 mm brim and bed temperature at the top of PLA's recommended range; an enclosure is not typically necessary for PLA but helps in drafty environments. If the print detaches mid-way, a narrower panel printed with the short edge down reduces the lever arm at the base and improves adhesion.

Advanced Variations

Curved lithophane lamp shades wrap the image around a cylinder, making a 360-degree light that displays the image from all angles. Ornament balls pack multiple images into a faceted sphere. Color lithophanes, achieved by pausing the print at a defined layer height and swapping to a colored filament, add a hue shift to bright regions — a technique popular for Christmas ornaments. Multi-panel mosaics tile a large photograph across several individually printable panels joined by alignment pins; 3DP Rocks generates these automatically. Each of these variations applies the same fundamental principles — high wall count, low layer height, careful extrusion calibration — and adds structural or aesthetic complexity on top.
