Most 3D modeling tools present a visual workspace where you sketch, extrude, and manipulate geometry with a mouse. OpenSCAD takes a different approach: you write code that describes geometry, and the software renders the result. A box becomes cube([50, 30, 20]). A cylinder with a hole through it is a cylinder() with a smaller cylinder() subtracted from it using difference(). This code-first paradigm is not for everyone — it has a learning curve that purely visual tools avoid — but for certain design tasks it is dramatically more capable: parametric designs that resize correctly by changing a variable, arrays of identical features generated by a single loop, and designs that can be version-controlled and diffed like any other text file.
How OpenSCAD's CSG Model Works
OpenSCAD uses constructive solid geometry (CSG), a modeling approach where complex shapes are built by combining simple primitives using Boolean operations. The three core operations are union (combine two shapes into one), difference (subtract one shape from another), and intersection (keep only the overlapping volume). Every OpenSCAD model is ultimately a tree of these operations applied to primitive shapes: cube, sphere, cylinder, and the user-defined shapes built from those. This is fundamentally different from the boundary-representation (B-rep) model used by Fusion 360, SolidWorks, and FreeCAD, where geometry is defined by its surface faces and edges. CSG is more limited — some shapes that are easy to create in B-rep tools are awkward in CSG — but it is computationally simple, fully deterministic, and produces watertight geometry by construction rather than as a goal.
Parameters and Variables
The core strength of OpenSCAD for 3D printing is parametric design. Define a variable at the top of the file — wall_thickness = 2.0; — and use it everywhere a wall dimension appears in the model. Changing one line changes the entire model. This is superficially similar to what GUI tools call "parametric" design, but OpenSCAD's parametric capability extends further: you can use variables in conditional expressions, compute derived dimensions mathematically, and use include or use statements to import shared parameter libraries. A printed bracket where the hole pattern needs to match a specific bolt spacing is a two-variable change; the geometry updates correctly throughout. Parametric design is particularly valuable for iterative engineering parts where dimensions change between versions and for parts that need to exist in multiple size variants — a cable clip that comes in 10 wire diameter sizes, for example.
The Customizer, built into OpenSCAD, reads annotated variables and produces a slider-based parameter panel that lets non-coding users adjust parameters interactively. A shared OpenSCAD file with Customizer annotations can be posted to Printables or Thingiverse and used by anyone to generate a custom-dimensioned version without reading the code.
Core Syntax for Beginners

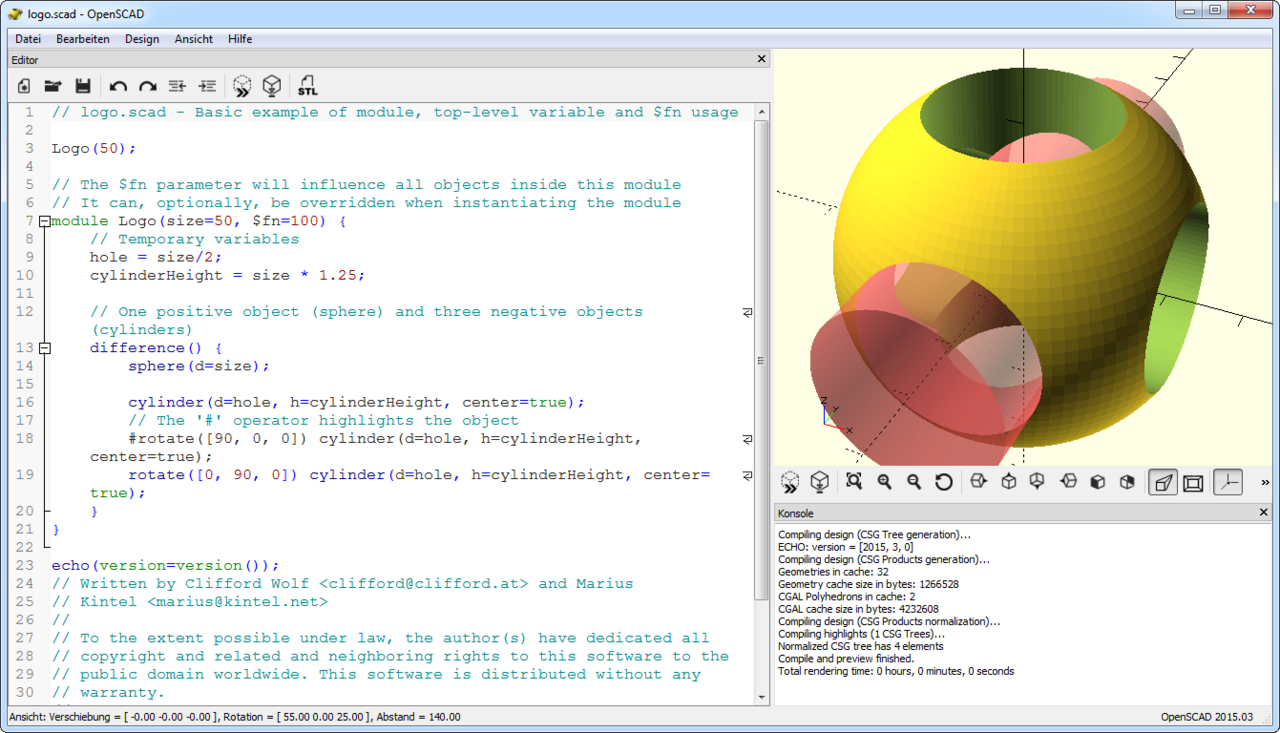

OpenSCAD's syntax is minimal. Primitives take named or positional parameters: cube(size=[x,y,z]), sphere(r=10), cylinder(h=height, r1=base_radius, r2=top_radius). Transformations position objects: translate([x,y,z]), rotate([x_deg,y_deg,z_deg]), mirror([1,0,0]). Boolean operations take a block of children: difference() { cube(50); translate([25,25,0]) cylinder(h=60, r=5); } creates a cube with a cylindrical hole. The for loop generates repeated geometry: for (i=[0:5]) { translate([i*20,0,0]) cube(10); } creates a row of six cubes. module definitions create reusable geometry blocks that behave like functions.
Practical 3D Printing Applications
OpenSCAD's CSG model is well-suited to a specific class of 3D printable objects: mechanical parts with regular geometry, parametric adapters, array-based structures, and anything where the design intent is mathematical rather than artistic. Box enclosures for electronics fit naturally — wall, floor, and lid are rectangles with holes subtracted for buttons and connectors. Cable clips, duct brackets, threaded rod ends, and gear-and-pinion pairs are all CSG-friendly geometry. Organic shapes — anything with freeform curves, human faces, complex terrain — do not fit the CSG model well; those belong in Blender or sculptural tools. OpenSCAD can import external STL files and use them as subtraction targets or combine them with parametric geometry, which extends its reach but does not convert it into a sculptural tool.
Thread generation is available through the BOSL2 library — Belfry OpenSCAD Library version 2 — which provides metric thread generators, standard fastener profiles, and many other useful modules that cover common mechanical design needs. Including BOSL2 at the top of a file and calling screw_hole() or metric_thread() produces accurate thread geometry that prints and meshes with standard hardware. BOSL2 is the single most useful OpenSCAD library for engineering applications.
Limitations to Understand Before Committing
OpenSCAD renders geometry by evaluating the CSG tree, which for complex models with many Boolean operations can be slow. Rendering a complex gear assembly might take minutes, not seconds, on consumer hardware. Preview mode (F5) uses an approximate OpenCSG renderer that is fast but can show artifacts; full render (F6) uses CGAL and is accurate but slow. The workflow — edit code, trigger render, review, repeat — has higher latency than a visual modeler's immediate feedback. For experienced users the workflow becomes fluid, but beginners should expect a steeper initial productivity curve.
OpenSCAD does not do fillets and chamfers well. Adding a rounded edge requires either a mathematical approach using minkowski() — which is computationally expensive — or the BOSL2 library's rounding modules. In GUI-based CAD tools, a chamfer is a one-click operation on a selected edge. In OpenSCAD it is a deliberate design decision built into the geometry from the start. If your designs require extensive edge treatment, FreeCAD or Fusion 360 with their direct B-rep chamfer tools will be less frustrating.
Getting Started
OpenSCAD is free, open source, and available for Windows, macOS, and Linux from the official site. The built-in editor is functional but not feature-rich; VS Code with the OpenSCAD extension provides syntax highlighting, inline preview, and autocompletion that significantly improve the experience. The official BOSL2 library is installed by dropping it into OpenSCAD's library directory and confirmed with use <BOSL2/std.scad> at the top of a file. The community on Printables and the dedicated OpenSCAD subreddit are active sources of example files and troubleshooting assistance.
