The National Institute of Standards and Technology has announced commercial availability of Reference Material 8047, a standardized photoactive resin developed to give vat photopolymerization labs — the SLA, DLP, and LCD printing world — a common yardstick for one of the process's most stubbornly inconsistent measurements: how deeply light cures resin, and how much energy it takes to do so.
Each unit of RM 8047 is a 20-gram bottle of formulated photoactive resin, pre-integrated with a photoinitiator and a photoabsorber in fixed, known concentrations. That last detail matters more than it sounds. In photopolymer 3D printing, the photoabsorber controls how far light penetrates into a vat of resin before it's soaked up, which in turn determines cure depth per exposure — the fundamental variable that governs layer formation, resolution, and print speed in every resin printer on the market. Get that number wrong, or measure it inconsistently from lab to lab, and two facilities running what they believe is "the same resin" can get meaningfully different parts.
That's precisely the problem NIST set out to fix. The material was developed in partnership with the Photopolymer Additive Manufacturing Alliance (PAMA), a cross-sector group that, per NIST, unites more than 30 stakeholders across the field. According to Jason Killgore, group leader in NIST's Applied Chemicals and Materials Division, the goal of the effort is to give the industry tools that "assure users that their 3D printed products are accurate and reproducible."
What the Interlaboratory Study Actually Measured
To build RM 8047's calibration data, NIST ran an interlaboratory study using three separate sets of NIST-built, calibrated light sources operating at 385 nanometers and 405 nanometers, the two wavelengths most commonly used across consumer and prosumer resin printers. Researchers exposed the reference resin to controlled doses of light at each wavelength and recorded the resulting cure depth for each radiant exposure level, generating matched pairs of data.
Those cure-depth/radiant-exposure pairs were then analyzed using the Jacobs Equation, the standard model relating cure depth logarithmically to exposure energy via two material-specific constants: critical exposure (the minimum dose needed to begin gelation) and cure depth at that threshold. Every resin printer's slicer software effectively assumes some version of this relationship when it calculates exposure times per layer — the "working curve" that operators tune, often by trial and error, when dialing in a new resin. What RM 8047 provides is a resin whose working curve is now traceable to NIST-calibrated light sources, rather than to whatever LED array and light meter a given lab happens to own.
Callie Higgins, NIST's additive manufacturing program coordinator and incoming executive chair of PAMA, called the material's deployment "a major milestone" for the field, one that unites the more than 30 cross-sector stakeholders behind a shared measurement baseline rather than each lab validating its own methodology in isolation.
Why This Took So Long
Photopolymer AM has lagged behind metal powder-bed and even FDM/FFF in the standards department for a structural reason: cure behavior is exquisitely sensitive to how a lab's specific light source is characterized. Two facilities measuring "the same" 405 nm exposure could report different irradiance values depending on their photodiode calibration, beam profile, and measurement geometry — and that discrepancy propagates directly into cure-depth data that looks incompatible even when the underlying resin chemistry is identical. Per NIST's account, that measurement variance in light penetration depth and exposure energy is what has held back commercial scaling of photopolymer additive manufacturing: without a shared reference, qualifying a resin process for regulated or safety-critical parts has meant re-deriving working curves from scratch at every site, with no way to independently verify whether a discrepancy comes from the resin, the printer, or the measurement.
RM 8047 attacks that problem by fixing the resin side of the equation. Because its photoinitiator and photoabsorber concentrations are known and constant, and because NIST's own calibrated light sources generated the reference cure-depth data, any lab can now expose the same material on its own hardware and compare its results directly against NIST's traceable values — isolating whether its equipment, rather than an unverifiable resin formulation, is the source of any deviation. The material is available now through the NIST Standard Reference Materials Store.
What It Means for Makers

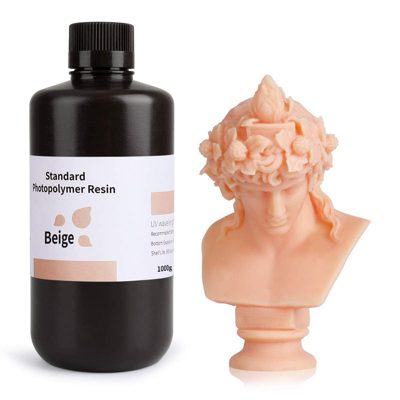

For the hobbyist running an Elegoo or Anycubic MSLA printer off the shelf, RM 8047 itself isn't something you'll be dosing into your own vat — it's aimed at resin formulators, printer manufacturers, and materials labs, not end users tuning exposure settings for a weekend print. But its downstream effects are worth tracking. A reference material that lets resin manufacturers validate their own cure-depth claims against a NIST-traceable baseline means the exposure-time and layer-cure recommendations printed on a bottle's data sheet — numbers every hobbyist currently treats as a starting point for manual calibration — should get more consistent and trustworthy across brands over time.
It also matters for the commercial and industrial end of the market that overlaps with serious makers: dental, jewelry, and engineering-grade resin printing, where parts increasingly need to meet reproducibility standards for certification or liability reasons. A shared calibration standard is exactly the kind of unglamorous infrastructure that lets vat photopolymerization graduate from "great for prototypes" to "qualified for production," the same trajectory metal AM has been on for the past decade with its own reference materials and round-robin studies. If PAMA's 30-plus-member cross-sector effort succeeds in getting resin formulators to publish working-curve data against a common baseline, expect slicer software and resin profiles to become measurably more portable between printer brands — a genuine quality-of-life improvement for anyone who's ever had to re-tune exposure settings from scratch after switching resin suppliers.
